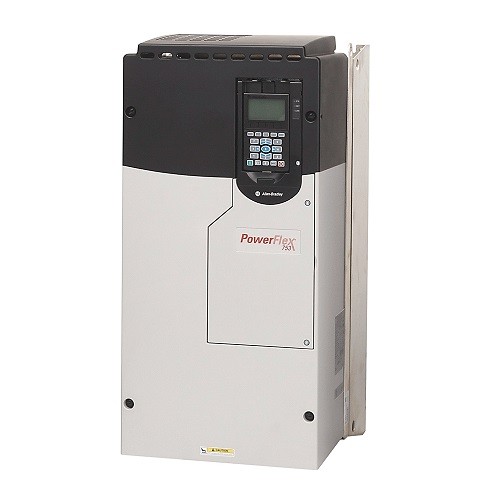

| Number of analogue outputs | 2 |
|---|---|
| Mains voltage | 480 V |
| Integrated breaking resistance | No |
| Brake IGBT | Brake IGBT installed |
| Internal communication module | No communication module |
| Fuse current rating | 80 A @ 650V DC |
| Input voltage rating | 480V AC, 3-phase, 60 Hz |
| AC input undervoltage trip | 280V AC @ 480V |
| Bus voltage, nom | 648V DC @ 480V |
| Bus undervoltage shutoff/fault | 305V DC @ 480V |
| Bus overvoltage trip | 810V DC @ 480V |
| Output voltage rating | 0...460V AC @ 480V AC, 1-phase |
| Circuit breaker current rating, max | 150 A @ 480V AC, 3-phase |
| Motor circuit protector current rating, max | 50 A @ 480V AC, 3-phase |
| Output current rating, continuous | 40 A @ 650V DC |
| Output current rating, 1 min | 51 A @ 650V DC |
| Output current rating, 3 sec | 68 A @ 650V DC |
| Logic control ride-thru | 0.5 seconds minimum, 2 seconds typical |
| Brake resistor | No internal brake resistor |
| Input current rating | 42.9 A @ 650V DC |
| Documentation | Manual |
| Carrier frequency | 2, 4, 8, and 10 kHz. Drive rating based on 4 kHz |
| Encoder quadrature | 90 degrees, ±27 degrees at 25 °C (77 °F) |
| AC input overvoltage trip | 570V AC @ 480V |
| Input power rating | 30.5 kVA @ 480V AC, 3-phase |
| Dual element time delay fuse current rating | 50...90 A @ 480V AC, 3-phase |
| Non-time delay fuse current rating | 50...150 A @ 480V AC, 3-phase |
| Digital input latency, typical | 9.2 ms @ stop signal for SVC motor control |
| Heat sink thermistor | Monitored by microprocessor overtemp trip |
| Digital input latency | 9.2...16.0 ms @ start signal for SVC motor control |
| Drive to motor power ratio, max | Recommended not greater than 2:1 ratio |
| Stop modes | Multiple programmable stop modes including — Ramp, Coast, DC-brake, Fast brake, Ramp-to-hold and S-curve |
| Frequency accuracy | Digital input: within ±0.01% of set output frequency |
