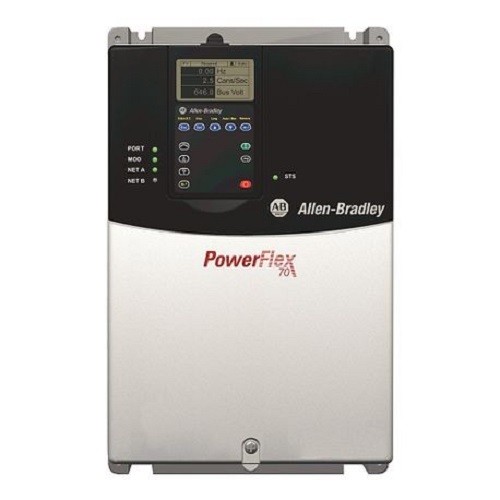

| Number of analogue outputs | 1 |
|---|---|
| Mains voltage | 480 V |
| Integrated breaking resistance | No |
| Internal dynamic brake resistors | 62 Ohm |
| Brake IGBT | Brake IGBT installed |
| Bus undervoltage output shutoff | 437V DC @ 480V |
| Bus undervoltage fault level | 300V DC @ 480V |
| Internal communication module | No communication module |
| AC input undervoltage trip | 280V AC @ 480V |
| Bus voltage, nom | 648V DC @ 480V |
| Bus overvoltage trip | 810V DC @ 480V |
| Circuit breaker current rating, max | 150 A @ 480V AC, 3-phase |
| Motor circuit protector current rating, max | 50 A @ 480V AC, 3-phase |
| Output current rating, continuous | 40 A @ 480V AC, 3-phase |
| Output current rating, 1 min | 51 A @ 480V AC, 3-phase |
| Output current rating, 3 sec | 68 A @ 480V AC, 3-phase |
| Logic control ride-thru | 0.5 seconds minimum, 2 seconds typical |
| Brake resistor | Without drive mounted brake resistor |
| Input current rating | 36.7 A @ 480V AC, 3-phase |
| Documentation | Manual |
| Carrier frequency | Standard control: 2, 3, 4, 5, 6, 7, 8, 9, and 10 kHz, vector control: 2, 4, 8, and 12 kHz, drive rating based on 4 kHz |
| Encoder quadrature | 90° ±27° |
| AC input overvoltage trip | 570V AC @ 480V |
| Input power rating | 30.5 kVA @ 480V AC, 3-phase |
| Dual element time delay fuse current rating | 50...90 A @ 480V AC, 3-phase |
| Non-time delay fuse current rating | 50...150 A @ 480V AC, 3-phase |
| Heat sink thermistor | Monitored by microprocessor overtemp trip |
| Drive to motor power ratio, max | Recommended not greater than 2:1 ratio |
| Stop modes | Multiple programmable stop modes including — Ramp, Coast, DC-brake, Fast brake, Ramp-to-hold and S-curve |
| Frequency accuracy | Digital input: within ±0.01% of set output frequency |
| Acceleration/deceleration | Two independently programmable accel and decel times. Each time can be programmed from 0...3600 seconds in 0.1 second increments |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of analogue inputs | 2 |
| Internal watts loss | 41.5 W @ 480V, 30 Hp normal duty |
| Supporting protocol for DeviceNet | Yes |
| Human interface model | No HIM-blank plate |
| Application in industrial area permitted | Yes |
| External watts loss | 396.8 W @ 480V, 30 Hp normal duty |
| Total watts loss | 438.3 W @ 480V, 30 Hp normal duty |
| Supporting protocol for EtherNet/IP | Yes |
